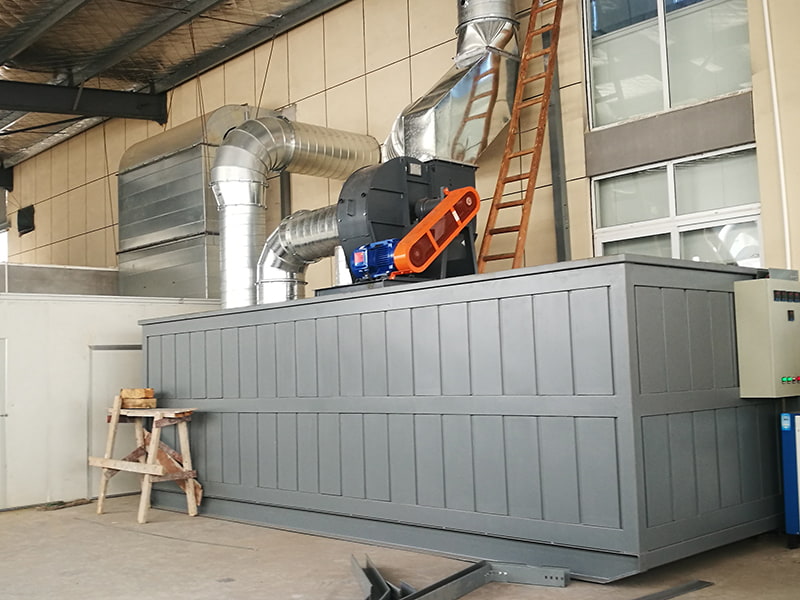

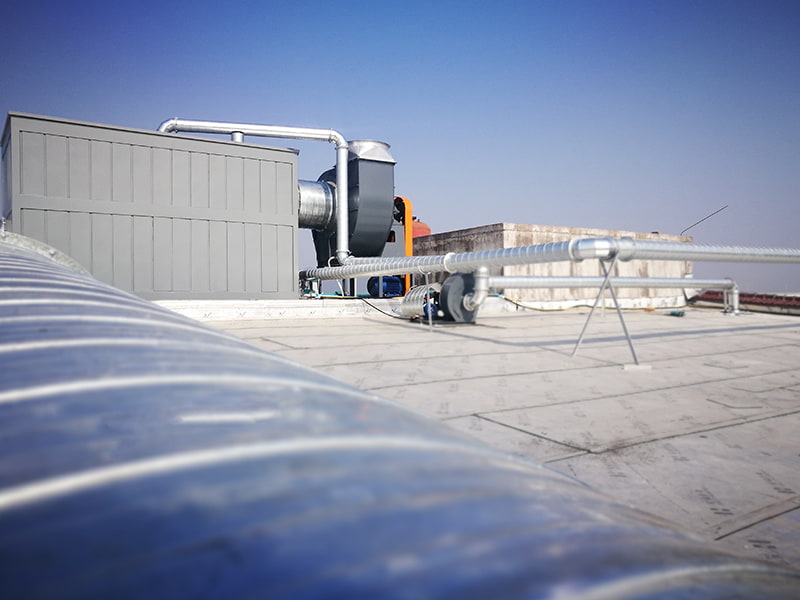

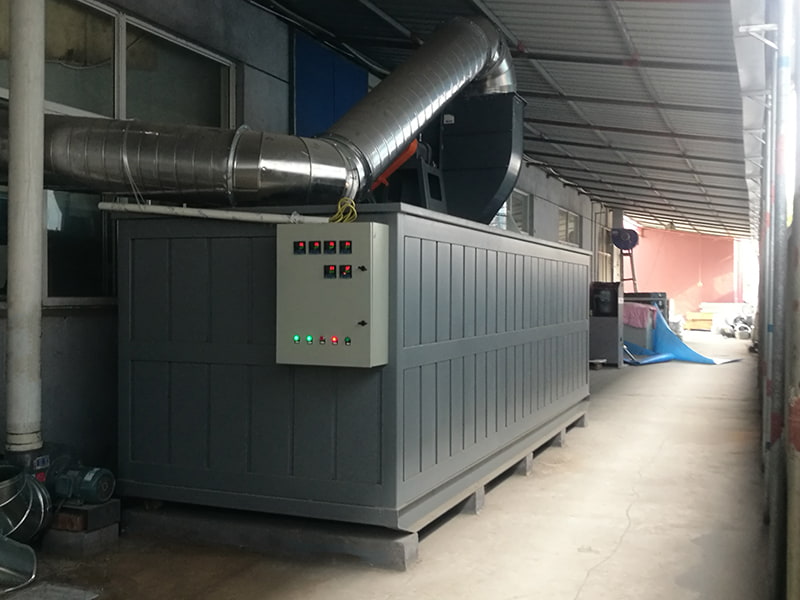

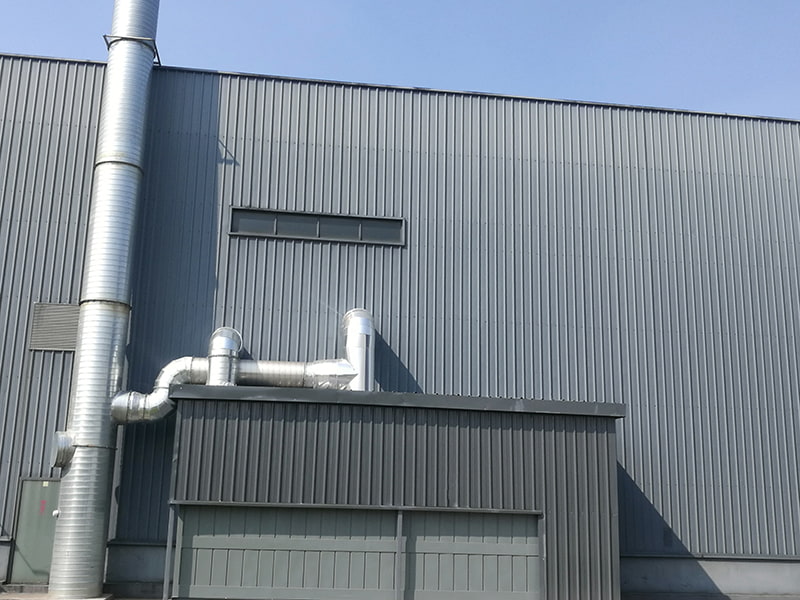

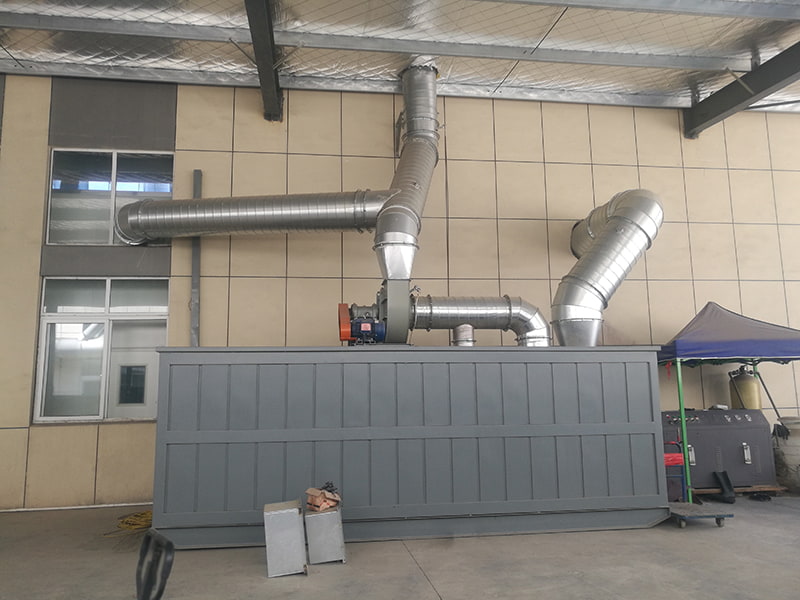

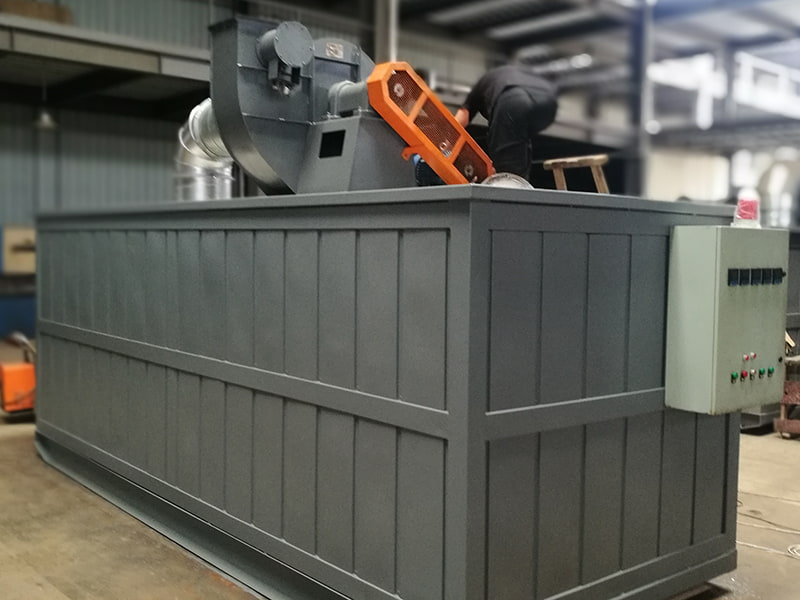

KJF-EO catalyst has the functions of convection and flows heat exchange catalytic decomposition and purification, and fully automatic mutual control. The high-concentration exhaust gas source is discharged into the buffer to dilute the air, exchanged and heated by several heat exchangers, and preheated to 310 ℃ through the heating chamber (electric heating is stopped when it exceeds 310 ℃, and constant temperature control is provided). Catalytic chamber for catalytic decomposition and purification. After the exhaust gas is catalyzed and oxidized to release heat, it is inhaled into the fan after being exchanged by several heat exchangers and discharged up to the standard. During normal operation, when preheating to 300℃, the fan starts, and the device enters the automatic control operation state, which automatically controls the use of heat balance, catalytic purification, and waste heat utilization. Make sure the purification is at its best.
KJF-EO catalyst is a fully automatic control type. When using this device, the operator only needs to supply the power supply, the electric heating of the device is started, and the device runs into the setting program. When the equipment is running, all opening and closing actions are completed by the execution command of the set value, without manual operation. To stop using the device, just cut off the power.

click here for the details.

FIRSTEO Machinery
Equipment Co., Ltd.

FIRSTEO Machinery Equipment Co., Ltd. is one of the well-known China Cataylist manufacturers and Cataylist suppliers in China. We have our own technology development, design, production, sales and service department. Our products include the overall facilities of the ethylene oxide sterilization workshop, the pretreatment room, the ethylene oxide sterilizer, the analytical room and the ethylene oxide waste gas treat equipment. Our company has established in a quality management system which accordance with ISO9001:2008 and ENISO134585:2003/AC2009. Our company is engaged in: pretreatment - sterilizer - strong analytical --EO waste gas treatment, the whole process equipment manufacturing factory to provide custom Cataylist and wholesale Cataylist. We are a famous China Cataylist suppliers and Cataylist factory of ethylene oxide sterilization that uses hot air heating system in China, and had applied the "utility model patent certificate" (energy saving, water-saving, no corrosion, fast heating speed; which can extend the life of the equipment for 10-15 years). Our own FSTEO-WQ series of ethylene oxide waste air absorption and treatment equipment was developed with the domestic universities. It allows the low temperature reaction process and reselected the catalyst reacting under low temperature. The removal rate of the waste gas was more than 99.9% after the purification of the waste gas. The emission residual gas is far below the national standard requirements. We have also developed an automatic control system which can join the operation between the waste gas treat process and the sterilizing cabinet. Our technical engineers have decades of experience in the industry. So we can provide professional man to install, test, training or repair machine for customer. We have a large number of high-quality customers: Jiangsu Fresenius Medical Care (Germany), Nanchang Kelinnike Medical Appliance (Germany), Shenzhen DooJung Group (Korea), Nanjing micro-tech, Winner Medical and other well-known Pharmaceutical equipment or other related products enterprises in China. We can also provide you with the best equipment and services.

Customer Evaluation
l am very happy with everything and I want to congratulate you for an outstanding worker
l am very happy with everything and I want to congratulate you for an outstanding worker
l am very happy with everything and I want to congratulate you for an outstanding worker
l am very happy with everything and I want to congratulate you for an outstanding worker
you deserve it as you are excellent at your job and help me timeously with all my problems.
Leave a Message
If you have any questions, please leave us a message and we will reply to you as soon as possible
  • Name *
  • Email *
  • Country *
  • Telephone
  • Message *
  • Honor
    Business license
    Patent certificate
    Production License

    Machinery News

    Industry knowledge

    How does a catalyst affect the rate of a chemical reaction?

    A catalyst is a substance that increases the rate of a chemical reaction without being consumed or permanently changed in the process. It achieves this by providing an alternative reaction pathway with a lower activation energy, thereby facilitating the conversion of reactants into products. The effect of a catalyst on the rate of a chemical reaction can be explained through several key mechanisms.
    Firstly, a catalyst provides an active site or surface where reactant molecules can adsorb and interact. This interaction weakens the bonds within the reactant molecules, making them more susceptible to breaking and rearranging to form the desired products. By facilitating the formation of intermediate species, catalysts lower the energy barrier (activation energy) that reactant molecules need to overcome for the reaction to proceed.
    Secondly, catalysts can alter the reaction mechanism, enabling the reaction to follow a more favorable pathway. They may stabilize high-energy transition states or intermediate species by forming temporary bonds or providing alternative reaction routes. This allows the reaction to occur through a lower energy pathway, thereby increasing the reaction rate.
    Additionally, catalysts can increase the concentration of reactant molecules at the active sites by adsorbing and holding them in close proximity. This enhances the likelihood of effective collisions between reactant molecules, leading to an increased frequency of successful reactions. The increased concentration of reactants near the catalyst surface promotes the formation of reaction products, further enhancing the reaction rate.
    Furthermore, catalysts can modify the electronic environment around the reactants, influencing their reactivity. They can donate or accept electrons, leading to charge transfer between the catalyst and reactants, and promoting the formation of reactive species. This electronic modification can enhance the activation of specific bonds within the reactant molecules, facilitating their conversion into products.
    It is important to note that catalysts do not change the thermodynamics of the reaction. They do not affect the overall energy change (enthalpy) or equilibrium position of the reaction. Instead, they facilitate the attainment of equilibrium by accelerating the rate of both the forward and reverse reactions. In other words, catalysts help reach the equilibrium state more quickly but do not shift the position of the equilibrium.
    The effectiveness of a catalyst depends on factors such as its surface area, structure, composition, and interaction with reactant molecules. These factors determine the catalyst's activity and selectivity towards specific reactions. Catalysts can be classified as homogeneous (in the same phase as the reactants) or heterogeneous (in a different phase). Homogeneous catalysts are typically molecular species dissolved in a solvent, while heterogeneous catalysts are usually solid materials with a large surface area.

    What are the different types of catalysts used in industrial processes?

    In industrial processes, catalysts play a vital role in accelerating chemical reactions and improving process efficiency. There are various types of catalysts utilized in different industries based on their specific applications and reaction requirements. Here are some of the common types of catalysts used in industrial processes:
    Heterogeneous Catalysts: Heterogeneous catalysts are solid catalysts that exist in a different phase from the reactants. They are widely employed in industrial processes due to their stability, ease of separation, and recyclability. Examples of heterogeneous catalysts include:
    a. Transition Metal Catalysts: Transition metals and their compounds, such as platinum, palladium, nickel, and iron, are commonly used as catalysts in industrial applications. They possess unique catalytic properties and can facilitate a wide range of reactions, including hydrogenation, oxidation, and hydrocarbon cracking.
    b. Metal Oxides: Metal oxides, such as titanium dioxide (TiO2), zinc oxide (ZnO), and alumina (Al2O3), are extensively utilized as catalysts in processes like the production of chemicals, fuel synthesis, and emissions control. Metal oxides are known for their catalytic activity, high surface area, and ability to undergo redox reactions.
    c. Zeolites: Zeolites are porous aluminosilicate minerals with well-defined structures and high surface areas. They are commonly used in petrochemical processes, such as cracking and isomerization reactions. Zeolites can selectively adsorb and catalyze specific reactant molecules, making them highly effective catalysts.
    d. Supported Catalysts: Supported catalysts consist of a catalytically active component dispersed on a support material, such as activated carbon, silica, or alumina. These catalysts offer enhanced stability, surface area, and controlled reactivity. Supported catalysts find applications in hydrogenation, oxidation, and other industrial reactions.
    Homogeneous Catalysts: Homogeneous catalysts are typically molecular species that are in the same phase as the reactants, often dissolved in a solvent. They provide excellent control over reaction selectivity and offer high catalytic activity. Examples of homogeneous catalysts include:
    a. Transition Metal Complexes: Transition metal complexes, such as those based on platinum, palladium, or ruthenium, are widely used in organic synthesis and fine chemical production. They can facilitate various reactions, including cross-coupling reactions, hydrogenation, and asymmetric catalysis.
    b. Organometallic Compounds: Organometallic compounds containing elements like nickel, rhodium, or cobalt serve as effective homogeneous catalysts. They are commonly employed in polymerization reactions, hydroformylation, and carbonylation processes.
    c. Enzymes: Enzymes are natural biological catalysts that accelerate chemical reactions in living organisms. In industrial processes, enzymes are used for applications such as food processing, biofuel production, and pharmaceutical synthesis. Enzymes offer high selectivity, mild reaction conditions, and the ability to work in aqueous environments.
    Biocatalysts: Biocatalysts encompass a broad range of catalysts derived from living organisms, including enzymes, whole cells, and genetically modified microorganisms. They are extensively used in industries such as biofuel production, pharmaceuticals, and food processing. Biocatalysts provide environmentally friendly alternatives and exhibit high specificity and selectivity in various reactions.
    Acid or Base Catalysts: Acid or base catalysts are commonly utilized in chemical reactions that involve acid-base chemistry, such as esterification, hydrolysis, and transesterification. Strong acids, such as sulfuric acid (H2SO4), and strong bases, such as sodium hydroxide (NaOH), can catalyze these reactions by providing or accepting protons.
